Modern medicine proves that the asphyxia, fetal distress and umbilical cord around neck(25% of pregnant has such situation) will affect the normal growing development of fetal, sometimes there will be dangerous to the fetus, even to the mother, and these symptoms will make the fetal heart rate changed abnormally, so the fetal heart range gives an indication of fetal well-being.
Fetal monitoring tests fetal heart rate changes by listening to fetal heart beat sound mainly, the normal value of fetal heart rate is 110-160bpm.
Fetal heart rate monitoring is a powerful guarantee to improve fetal safety.
If conditions permit, pregnant women over 16 weeks are recommended to listen to the fetal heart sound for 1-2 minutes per time, three times per day(within 30 minutes after getting up, within 60 minutes after lunch, and within 30 minutes going to sleep).
Ultrasound gel, water or edible oil should be daubed on the probe while using, and the probe should be placed directly on the abdominal skin.

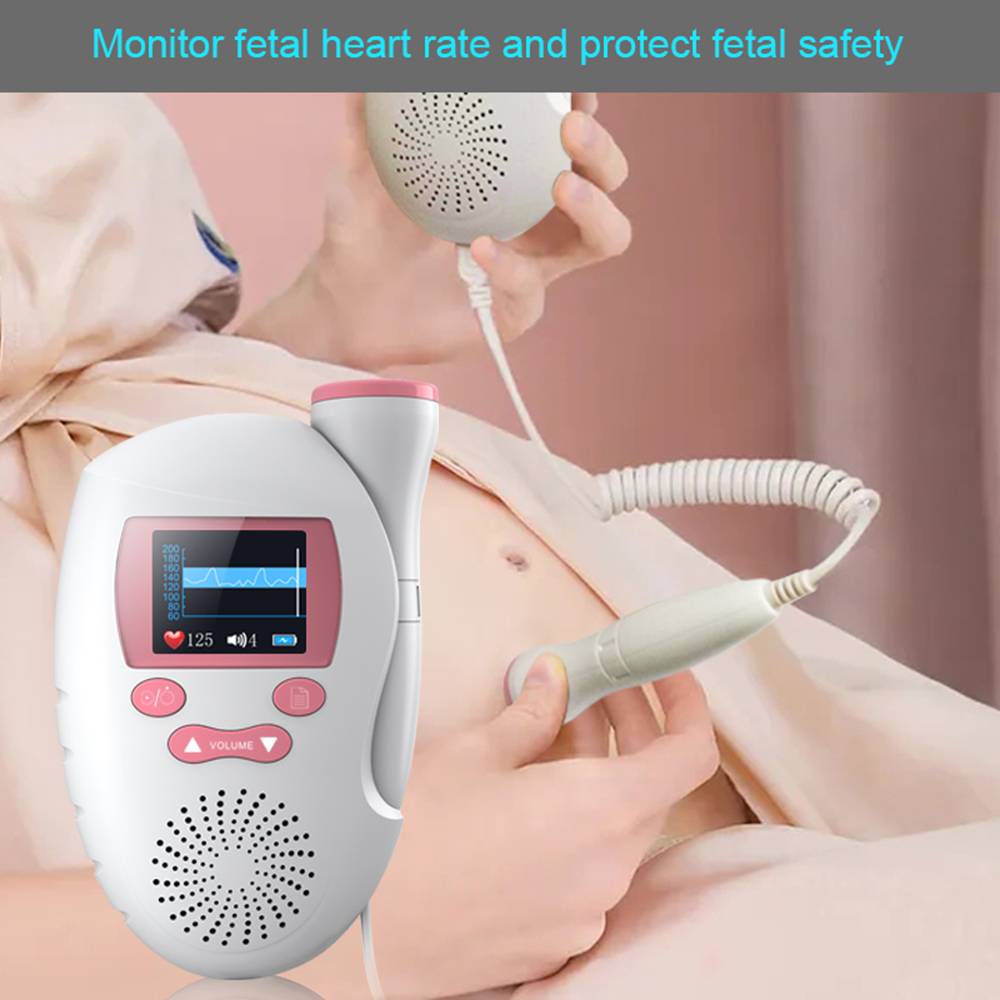

The Acurio AF-703 Fetal Doppler which is CE and CFDA approved, and is manufactured strictly according to ISO13485 system requirements. Safe & reliable is Acurio’s top priority.
Built-in speaker provides clear sound of fetal heartbeat, a audio output jack allows you to listen the fetal heartbeat through a earphone/headphone. And you can also get the fetal heart rate reading and waveform from a 1.7inch TFT color display.
The high sensitive doppler probe and DSP calculating techniques, provides accurate fetal heart rate detection.
It is applicable to hospital, clinic and home self-check. And it is an essential gift for expectant mothers.
|Product Name||Pocket Fetal Doppler|
|Display||1.7 inch Color TFT|
|FHR Performance||Integrative Sensitivity: ≥90db|
|FHR Measuring Range: 50~210BPM|
|Speaker Power: 0.5W|
|Ultrasound Probe||Working Frequency: 2.5MHz±15%|
|Working Mode: Continuous Wave Doppler|
|Spatial-peak Temporal-peak Intensity: <21.7kPa|
|Ultrasonic Output Intensity: <10mW|
|Effective Radiating Area of Transducer: 157mm²±15%|
|Acoustic Parameters||IOB: < 20mW/cm²|
|ISPTA: < 100mW/cm²|
|Measuring Time||1 minute|
|Working Environment||Temperature: +5℃~+40℃|
|Atmospheric Pressure: 86kPa~106kPa|
|Transport and Storage Environment||Temperature: -10℃~+55℃|
|Atmospheric Pressure: 86kPa~106kPa|
|Safety Type||Internal power supply, Type BF applied part|
|Product||Product Size: 41*93*143 mm|
|Net Wight: 170g±5g(excluding batteries)|
|Unit Package: 205*135*70mm|
|Carton||Carton Size: 425*422*382mm|
Who we are?
Acurio founded in 2013, is one of the leading manufacturers specialized in providing Safe & Accurate & Reliable medical equipments. We have around 150 intelligent, self-driven and innovative people working on the R&D, Manufacturing, sales and service.
What makes our product quality guaranteed?
Safe, Accurate and Reliable are the most important things to Acurio. We designed our products according to CE, FDA standard, and we manufacture all of them under the requirements of ISO13485 system.
Why we love what we do?
We love to learn and we are thrilled whenever customers share their experiences with us. Every feedback makes our product better. Above all, we are proud of our product knowledge and we are always willing to provide our support through email, Skype, Whatsapp, Linkedin, Facebook, instagram Youtube and wechat.
What’s our company warranty?
We provide 12 months warranty for our products.
Do we offer ODM/OEM service?
Yes, we have a professional R&D team with many experienced designers and engineers, and we have around 120 skilled workers at our manufacturing base. That’s why we can offer our customer better ODM/OEM services.
What’s the delivery time?
Usually 7~30 days depends on your order quantity.
